In development · Pilot build Q4 2026

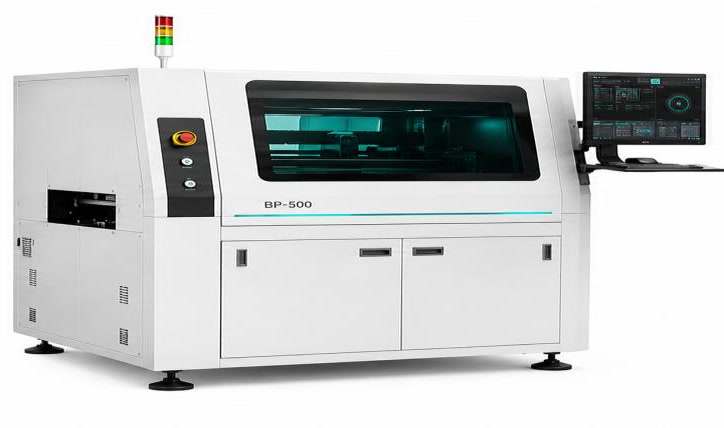

BP-500 Standard
A standard printer platform for multi-product SMT lines, with camera-vision alignment and closed-loop squeegee pressure control. Designed and built by BPK in Daegu, Korea.
| PCB size | 50 × 50 mm to 460 × 510 mm |
|---|---|
| Alignment | Camera vision, ±12.5 µm (target) |
| Cycle time | 6–8 s (target) |
| Squeegee | Closed-loop pressure control |
| Paste supply | Automatic dispenser |
| Stencil cleaning | Dry, wet and vacuum |
| AI vision | Option — under development |
| Line interface | SMEMA standard |
Development targets. Final values are confirmed in factory and site acceptance tests before delivery.
Built to customer specification

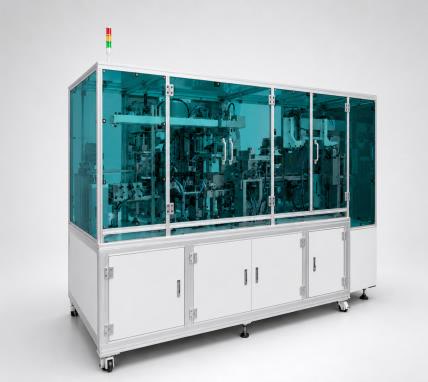

Custom High-Throughput model
For large boards, high-volume lines and special substrates. We design the machine around your technical specification sheet and your line layout.
- Boards of 750 mm and larger
- Dual squeegee option
- Advanced camera vision
- AI vision with SPI feedback (under development)
- Line interface to your specification
Handling equipment that completes the line
All units use the SMEMA interface, so they work with printers, mounters and reflow ovens from other makers.
- LoaderFeeds bare boards from magazines onto the line.
- UnloaderCollects finished boards into magazines at the end of the line.
- ConveyorTransfers boards between stations.
- BufferHolds boards between stations to absorb differences in cycle time.
- Line interfaceConnects BPK and third-party machines over SMEMA signals.
Tell us about your boards and line
Board size range, volumes and the machines already on your line help us answer precisely.
